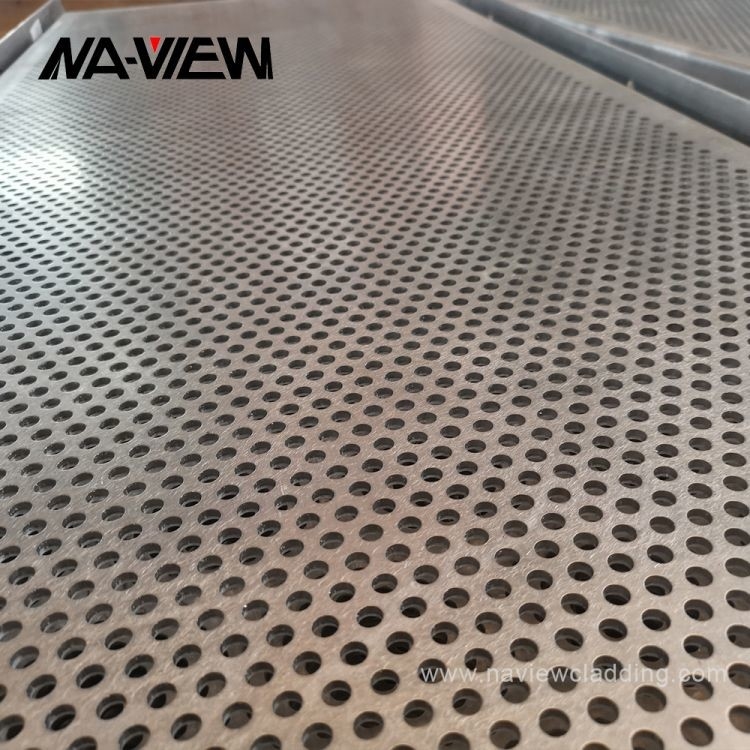

Multifunctional Decorative Wall Panels Perforated Aluminum Sheet Screen

Basic Information
Place of Origin: China
Brand Name: Na-View
Certification: ISO9001,CE
Model Number: Aluminum Panels
Minimum Order Quantity: 100 SQM
Price: Negotiation
Packaging Details: Packed in plastic film and bubble firstly, and then reinforced with wooden case for outer packing
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 20000 SQM per month
Detail Information
Product Name: Aluminum Panel Thickness Of Aluminum: 1.0-6.0mm
Size Of Panel: 1220x2440mm Or Custom Sizes Feature: Durable, Ready For Installation
Production Time: About 20 Days Shipping: Customized Fabrication
Warranty: 15 Years Coating: PVDF Coating
Shape: Flat, Curved, Bend,Trangle & Etc
High Light:

Multifunctional Aluminum Decorative Wall Panels


Perforated Aluminum Decorative Wall Panels


6.0mm Thickness Decorative Wall Panels

Product Description

15 Year Experience Multifunctional Metal Decorative Perforated Sheet Aluminum Screen


Product Description


Thickness 0.8-3.0mm
Length <6000mm or customized
Width <1900mm or customized
Metal module 3003/1100 H24
Color white/ black/ grey or customized
Package regular beauty box packaged
Others surface treatment/ size/color /package can be customized





perforated metal panels perforated metal screens





Surface Treatment

1 Epoxy-Polyester Resin coated/painted
2 Polyester coated/painted
3 PVDF single coated/painted
4 PVDF double coated/painted
5 Imitational Stone/ wooden grain






  • Aluminum panel is made from high quality 1100 or 3003 series of Aluminum alloy according to customer’s designs and drawings.
  • The surface finish of Aluminum panel is coated with PVDF or Polyester or Powder, the minimum coating film is 25 Microns.
  • The coating consists of primer, color paints and varnish.
  • The shapes or styles are customized according to customer's designs


  • Thickness of alloy: 1.5mm, 2mm, 2.5mm, 3mm, 4mm etc.
  • Dimensions (L*W*H): 2440x1220x20mm or specified dimensions


  • 3.0 thick aluminum plate 8 kg per square weight, tensile strength of 100-280n/SQM.Weathering resistance and good corrosion resistance.
  • Advanced electrostatic spraying technology makes the paint and between aluminum plate attached uniform,color diversity,uniform coating,color diversity.
  • Fluorocarbon coating film not adherent surface,it is difficult to adhere to pollutants,more good self cleaning.The Kynar-500,hylur500 materials for the PVDF fluorocarbon can be up to 25 years not fades.
  • Can be processed into plane,arc, spherical, etc all kinds of complicated geomerty.
  • Light weight,good rigidity and strength
  • good fire resistance,anti - corrosion, Thermos stability
  • Excellent UV resistance, excellent weather resistance of surface, superior resistance to acid and alkali. Shelf life is 15 years without discoloration under normal outdoor environment.
  • Good form ability, can be formed to plane, arc and complicated shape, such as sphere and tower.

Hard-to-stain,easy to clean and maintain
